1 Module (1P+N) RCBO 6, 4.5 & 3kA
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
- These are Type A from 30 April 2023 as per the amended clause 2.6.2.2.2 of AS/NZS 3000:2018.
- Latest 2022 model is now non-polarised (line & load, top or bottom) & ESV listed.
- Two pole safety feature allows switching of both Active and Neutral contacts.
- Single module saves valuable switchboard space.
- Approval:
- 3kA: SAA131351EA & TUV 3kA VIC Test Report (50083833.001)
- 4.5kA: SAA1290946EA & TUV 4.5kA VIC Test Report (50084087.001)
- 6kA: SAA1290946EA & TUV 6kA VIC Test Report (50084088.001)
Technical Data:
|
Standards |
AS/NZS 61009 - 1 |
|
Magnetic tripping characteristics |
B, C |
|
Residual tripping characteristics |
A |
|
Rated current (A) |
3kA & 6kA: 10, 16, 20 4.5kA: 10, 16, 20, 25, 32, 40 |
|
Rated residual current |
30 mA |
|
Calibration temperature |
30 ℃ |
|
Rated voltage 1P |
240V |
|
Frequency |
50/60 |
|
Maximum service voltage |
264 |
|
Tripping Duration: |
Instantaneous<0.1s |
|
Power supply |
Non-Polarised, Line & Load, Top or Bottom |
|
Selectivity class |
3 |
|
Residual making and breaking capacity |
2000A |
|
Short circuit capacity |
3000A, 4500A, 6000A |
|
Isolation application (IEC 60947-2) |
Yes |
|
Insulation resistance (M ohm) |
1,000 |
|
Insulation voltage (V) |
500 |
|
Dielectric rigidity (V) |
2,500 |
|
Vibration resistance |
1.5g |
|
Endurance (operations) electrical |
>6,000 |
|
Mechanical |
>20,000 |
|
Protection degree outside |
IP20 |
|
inside enclosure |
IP40 |
|
Self-extinguishing degree (UL 94) |
V2 |
|
Tropicalisation (IEC 60068-2) |
+55 ℃/95% RH |
|
Operating temperature |
-5/+55 ℃ |
|
Storage temperature |
-25/+70 ℃ |
|
Terminal capacity (top & bottom) min / max |
1-16mm |
|
Terminal torque (top / bottom) |
3 |
|
Busbar systems |
3kA: No 4.5kA & 6kA: Yes |
|
Accessories |
No |
|

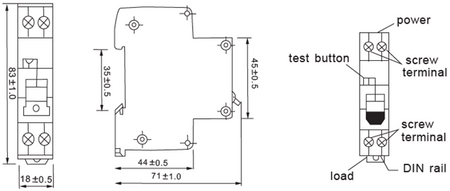

Dimensions (mm) |
3kA: 71(H) 81(L) 18(W) 4.5kA & 6kA: 72(H) 81(L) 18(W) |
|
Weight (g) |
85 |
