M1 SINGLE DOOR ACCESS MODULE

A single door access interface module for use on the M1 and M1EZ8 Control Panels. The M1KAM connects to the 4 wire keypad data bus in place of a traditional M1 Keypad.

Since the maximum number of keypads on an M1 or M1EZ8 is 16, the maximum number of M1KAM modules (and controlled doors) is 16, minus any installed keypads.

Even though an M1 Keypad can accept a 26-bit access reader, the M1KAM is a more powerful and less expensive access solution. For example; the M1KAM includes a relay (door unlock) output with form "C" dry contacts, making it compatible with most door lock devices regardless of the voltage rating and style (AC or DC). The M1KAM accepts many types of card swipe or proximity readers conforming to the 26 bit Wiegand format.

The M1KAM also has additional inputs and outputs, including a request to exit (RTE) button or device and a Door Contact (Sensor) input. Both inputs are supervised with a 2,200 EOL resistor. Outputs on the M1KAM consists of a voltage output for Door Held Open Alarm, a voltage output for System Ready to Arm, and voltage output for System Armed. These outputs are 12VDC (switched negative) and are rated for a maximum current of 50 milliamps.

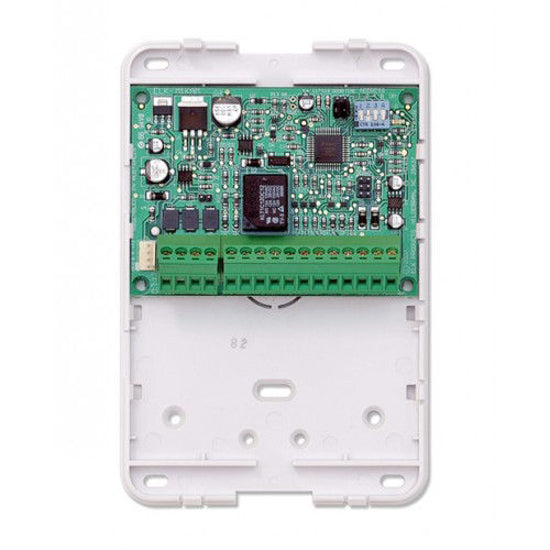

The M1KAM is mounted in a universal surface mount plastic housing with knockouts for surface mount raceways.

Refer to Ness Access Control for a full range of Access Control Systems.



Note: This product requires firmware version 1.1.1 when using it with a 101-095.
