150-100PT100-100 | Flat Lid Trunking Tapered Reducer
Regular price
$321.78
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

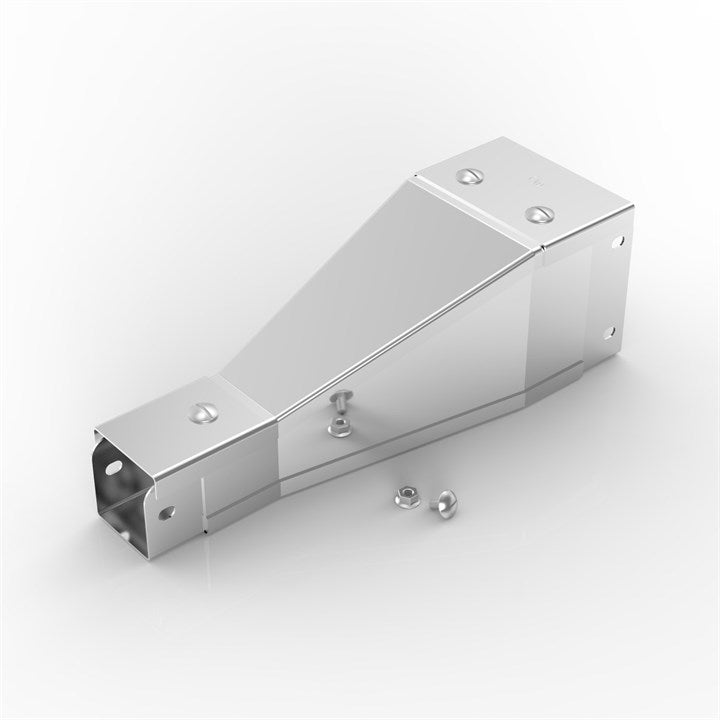

Electrix® Flat Lid Trunking Tapered Reducers, in 304 - V2A - 1.4301 stainless steel, are used to change the dimensions of trunking throughout an installation.
Fewer coupling screws are required due to our factory fitted couplings, making the installation easier to install and easier to clean.
This polished finish tapered reducer increases/decreases the size of our Flat Lid Trunking from 150 x 100 to 100 x 100 (W x H mm).
Our unique system features a cover plate over each lid joint which reduces the ingress of foreign matter.
UL Listed.
Material Information
- Material Type: Stainless Steel
- Material Grade: 304 - V2A - 1.4301
- Material Finish: Polished
- Material Thickness (mm): 1.2
- Size (W x H mm): 150 x 100 to 100 x 100
-
Custom Design:
Custom Designs available on request.
- 316L - V4A - 1.4404 material
- Custom sizes
- Pre-lasered cable entry holes & laser cut apertures
- Multi-compartment
- Lid safety chains
- Lid gasket material
- Unique Cover Plate: Fitted over every lid joint, reduces the ingress of foreign matter
-
Approvals:
-
UL Information: Surface Metal Raceway Fittings
File Number: E233530 (60UB)
- For Trunking Size (mm): 100 x 100, 150 x 100
- Supplied With: Fitted Couplings, Lid Fastening Turnbuckles, Cover Plates, Nuts & Screws
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Flat Lid Trunking
- Alternative Material Finish / Grade: Satin (Brushed) 304 - V2A - 1.4301
- Pack Quantity: 1
- Weight (kg): 1.78
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
