AL-S17 100-100 | 15° Apex Lid Trunking Flare
Regular price
$237.33
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

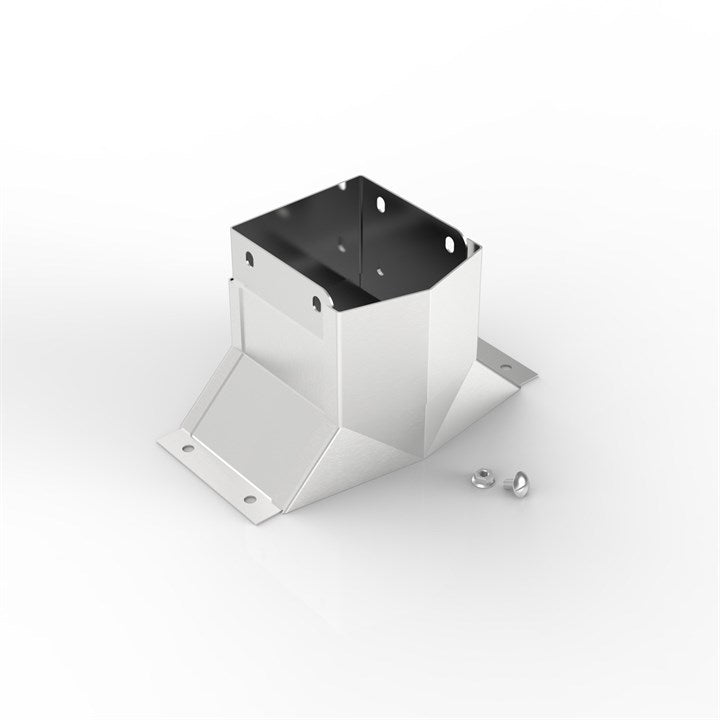

Electrix® 15° Apex Lid Trunking Gusset Flares, in 304 - V2A - 1.4301 stainless steel, can be used to join trunking to a machine or enclosure.
This satin (brushed) finish flare is compatible with our 100 x 100 (W x H mm) 15° Apex Lid Trunking System.
The 15° apex lid minimises the risk of undesirable items being retained upon the lid surface and our unique system features a cover plate over each lid joint which reduces the ingress of foreign matter. Complete with nuts & screws.
Material Information
- Material Type: Stainless Steel
- Material Grade: 304 - V2A - 1.4301
- Material Finish: Satin (Brushed)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 1.2
- Size (W x H mm): 100 x 100
- Height (mm): 100
- Width (mm): 100
-
Custom Design:
Custom Designs available on request.
- 316L - V4A - 1.4404 material
- Polished finish
- Bespoke sizes
- Lid Pitch: 15° Apex
- Lid Position: Front Lid Flare
- Unique Cover Plate: One fitted per lid, reduces the ingress of foreign matter
-
Approvals:
-
UL Information: Surface Metal Raceway Fittings
File Number: E233530 (60UB)
- For Trunking Size (mm): 100 x 100
- Supplied With: Fitted Coupling, Lid Fastening Turnbuckles, Cover Plate, Nuts & Screws
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: 15° Apex Lid Trunking
- Example Use: To connect trunking to an enclosure
- Pack Quantity: 1
- Weight (kg): 0.77
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
