AL-SCK 75-75 | 15° Apex Lid Trunking Coupling Kit
Regular price
$50.90
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Electrix® 15° Apex Lid Trunking Coupling Kits, in 304 - V2A - 1.4301 stainless steel, are used when a 15° Apex Lid Trunking Length is cut on site.

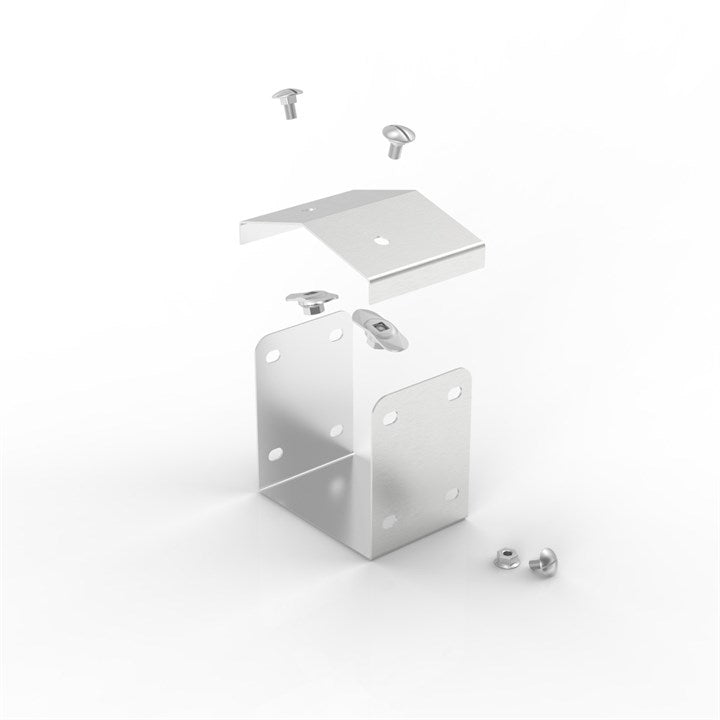

This coupling kit is compatible with our 75 x 75 (W x H mm) 15° Apex Lid Trunking System and comprises of: coupling, cover plate (satin/brushed finish), turnbuckle lid retainers, nuts & screws.
The 15° apex lid minimises the risk of undesirable items being retained upon the lid surface and our unique system features a cover plate over each lid joint which reduces the ingress of foreign matter.
Material Information
- Material Type: Stainless Steel
- Material Grade: 304 - V2A - 1.4301
- Material Finish: Satin (Brushed)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 1.2
- Size (W x H mm): 75 x 75
- Height (mm): 75
- Width (mm): 75
-
Custom Design:
Custom Designs available on request.
- 316L - V4A - 1.4404 material
- Polished finish
- Bespoke sizes
- Lid Pitch: 15° Apex
- Unique Cover Plate: Supplied
-
Approvals:
-
UL Information: Surface Metal Raceway Fittings
File Number: E233530 (60UB)
- For Trunking Size (mm): 75 x 75
- Supplied With: Coupling, Lid Fastening Turnbuckles, Cover Plate, Nuts & Screws
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: 15° Apex Lid Trunking
- Pack Quantity: 1
- Weight (kg): 0.26
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
