BASK ENC SUPPORT 304 | Wire Basket Cable Tray Universal Enclosure Support
Regular price
$38.27
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

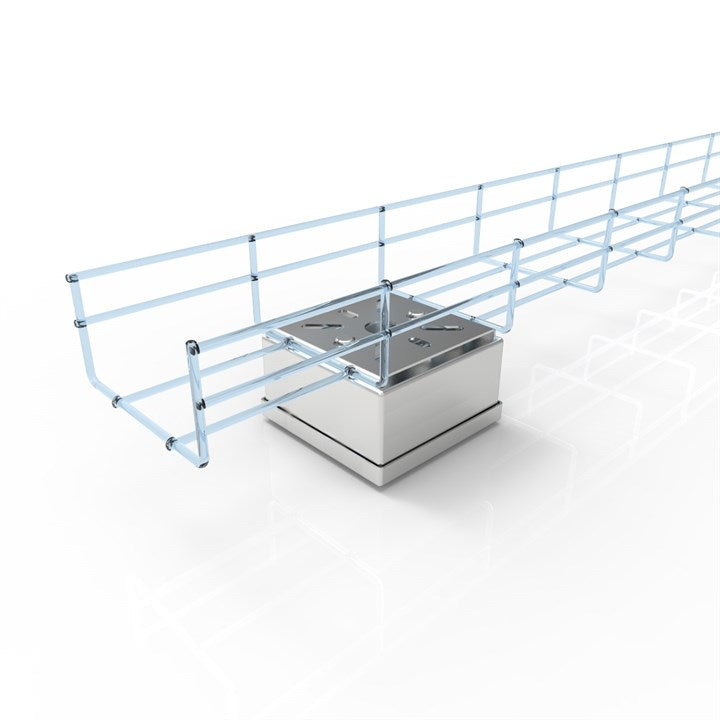

The Electrix® Wire Basket Cable Tray Universal Enclosure Support, in 304 - V2A - 1.4301 stainless steel, is used when attaching one of our Electrical Enclosures to our Wire Basket Cable Tray Lengths.
This universal enclosure plate is suitable for our Electrical Enclosures and is compatible with all sizes of our Wire Basket Cable Tray Lengths.
This enclosure plate is also supplied complete with a 20mm Ø cable entry hole.
The maximum recommended enclosure size is 160 x 160 x 105 (H x W x D mm).
Material Information
- Material Type: Stainless Steel
- Material Grade: 304L - V2A - 1.4307
- Material Finish: Satin (Brushed)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 1.5
- For Tray Width (mm): 50, 75, 100, 150, 200, 300, 400, 600
- For Conduit Ø (mm): 20
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Wire Basket Cable Tray
- Pack Quantity: 1
- Weight (kg): 0.1
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
