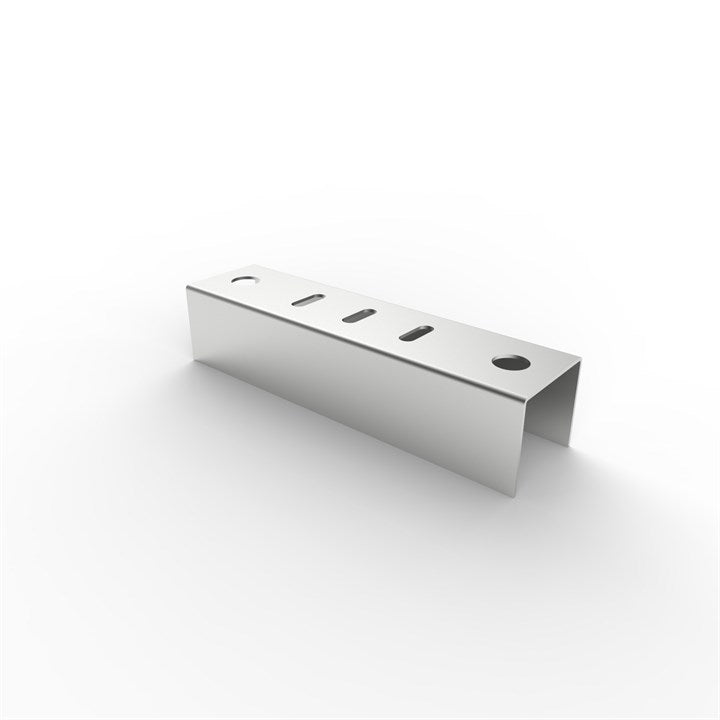

CHB-D 305 | Channel Hanger Bracket
Regular price
$96.48
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Electrix® Channel Hanger Brackets, in 316L - V4A - 1.4404 stainless steel, are used to suspend your installation from our Threaded Rod.
This channel hanger bracket is compatible with any of our Flat Lid Trunking, Apex Lid Trunking, Conduit and Cable Tray Systems up to 320 mm in width.
Material Information
- Material Type: Stainless Steel
- Material Grade: 316L - V4A - 1.4404
- Material Finish: Dull (2B)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 2
- Height (mm): 41
- Fixing Centres (mm): 343
- Hole Ø: M12
- Rod Ø: M10, M12
- Recommended Usable Width (mm): Up to 305
- Maximum Usable Width (mm): 320
- Custom Design: Dull (2B) 1.4301 - 304 - V2A available on request
- For Trunking Size (mm): 50 x 50, 75 x 75, 100 x 50, 100 x 100, 150 x 100, 150 x 150
- For Tray Width (mm): 50, 51, 75, 76, 100, 102, 150, 152, 200, 225, 230, 300, 305
- Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: 15° Apex Lid Trunking, Lighting Trunking, Metric Conduit, NPT Conduit, Medium Duty Straight Edge Cable Tray, Medium Duty Return Flange Cable Tray, Heavy Duty Return Flange Cable Tray, Wire Basket Cable Tray, Brackets, Threaded Rod, Fasteners, Flat Lid Trunking
- Pack Quantity: 1
- Weight (kg): 0.72
- Commodity Code: 73269098
- Non-Refundable: Yes
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
