ELEC 2G-S BASE | Surface Mounted Back Box, 2 Gang
Regular price
$301.86
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

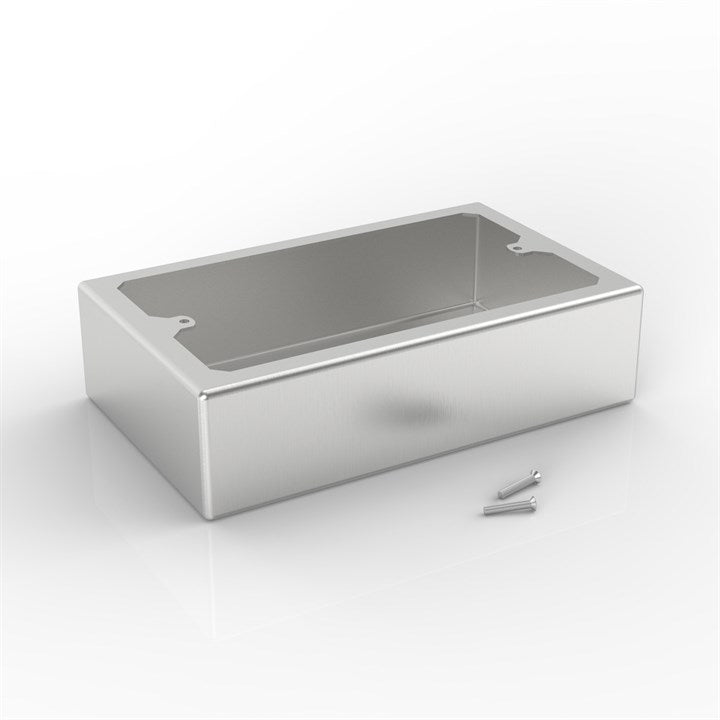

Electrix® Surface Mounted Back Boxes, in 304 - V2A - 1.4301 stainless steel, are specially designed for use in laboratories, kitchens & many other clean areas.
This satin (brushed) finish back box is suitable for most UK style 2 gang switched sockets or data outlet points.
Material Information
- Material Type: Stainless Steel
- Material Grade: 304 - V2A - 1.4301
- Material Finish: Satin (Brushed)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 1.2
- Size (H x W x D mm): 41 x 154 x 94
- Height (mm): 41
- Width (mm): 154
- Depth (mm): 94
-
Custom Design:
Custom Designs available on request.
- 316L - V4A - 1.4404 material
- Pre-lasered cable entry holes & laser cut apertures
- Alternative shapes and sizes
- Number of Gangs: 2
- UK Style: Yes
- Earthing: Earth terminal
- Supplied With: Fixing Screws
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Sockets & Back Boxes
- Alternative Material Finish / Grade: Polished 304 - V2A - 1.4301
- Pack Quantity: 1
- Weight (kg): 0.34
- Commodity Code: 73269098
- Fine Print: This product is not waterproof
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
