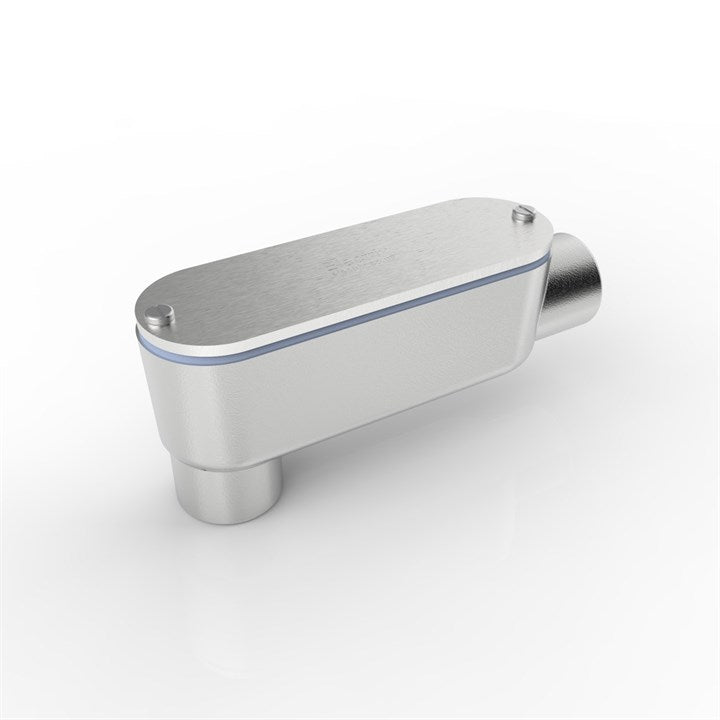

ELEC-TYPE-LB3/4 | NPT Conduit LB Body (Back Entry Box)

In stock
Regular price $259.80 inc. GST

Electrix® NPT Conduit LB Bodies (Back Entry Boxes), 316C16F stainless steel with a 316L - V4A - 1.4404 stainless steel lid, can be used as an inspection point and pull box during a long conduit run. The lid can be removed for easy cable inspection, whilst the rear entry hole is ideal for tight installations.

The Electrix® Stainless Steel Conduit System is recognized worldwide for its unrivalled quality and aesthetics.

Since the system was launched, it has been specified by the world's largest companies, for projects ranging from oil rigs to monuments, tunnels to chemical processing plants.

This IP69K* back entry box, complete with an internal earth point, is compatible with our 3/4" NPT Conduit System.

Each back entry box is supplied with a lid, gasket & screws.

Material Information
  • Material Type: Stainless Steel
  • Material Grade: Lid: 316L - V4A - 1.4404
    Base: 316C16F
  • Material Finish: Lid: Satin (Brushed)
    Base: Electropolished
Dimensions
  • Conduit Ø (in.): 3/4
Conduit Information
  • Thread Type: NPT
  • Female Thread: NPT
  • Thread Details: Tapered
  • Gasket Material: Silicone - FDA Approved
Ratings & Standards
  • Approvals: cULus ListedIP69KIP66
  • UL Information: Metallic Outlet Boxes UL514A
    Metallic Outlet Boxes C222 No. 18. 1-04
    File Number: E300646 (32XW)
  • Environmental Rating: IP66 / IP69K*
    Type 4X*
For Use With
  • For Conduit Ø (in.): 3/4
General Information
  • Supplied With: Lid, Gasket & Lid Fixings
  • Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
  • Compatible With: NPT Conduit
  • Pack Quantity: 1
  • Weight (kg): 0.92
  • Commodity Code: 73071990
  • Fine Print: *IP/Type will only be maintained when all conduit entries and couplings have been adequately sealed. Earthing must be carried out in accordance with local electrical regulations. The use of a thread sealant is recommended on the last two threads of engagement with the conduit body.
  • Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
