PFV Series - 100 Amp Service Fuse Disconnector

Application

For pole mounted fusing of overhead house service up to 100A.

Constructed with no corrosive materials to provide long in-service life in outdoor environments.

Lower fuse carrier accepts BS 58x22 round fuse elements and is fitted with high-visibility house number plates to avoid incorrect disconnection.

Features

• UV stabilised, impact resistant and flame retardant body
• Insulation piercing connectors on both line and load side
• Tested to AS/NZS 2.1
• Top mounted stainless steel bracket M8 fixing bolt insulated from active components
• Underside cable entry to IPC connectors creating a natural drip loop
• Conductor seal fully encapsulates conductor end
• Utilises shear head technology
• Shear-head bolts located at end of fuse for easier installation
• UV stabilised bird guard over cable seals
• Completely waterproof bi-metallic connection
• Perforated body to provide cross-flow ventilation
• Range of brackets to suit various applications
• IP44
• Fuse is full vented to allow air circulation around fuse
• Standard pig tail stick to operate service fuse base
• Optional high-visibility house numbering system
• Fuse is fully vented.

PFV Series - Accessories

There are several accessories available for the PFV100695, to facilitate various mounting applications. All are designed and developed to suit harsh environmental conditions.

High Visibility House Numbering System

• Multiple retrofit number plates available for existing PFV fuses in operation
• PFIDP, this is the fuse carrier base complete with ID

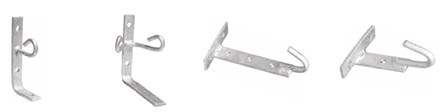

Mounting Bracket Options

Other fuse sizes available on request.

APR Series - 160 Amp, 400 Amp & 600 Amp Fuses

Developed to work with NH fuses, the APR series of fuse switch disconnectors are available in 160, 400 and 630 amp versions. They are used for the protection and isolation of secondary lines of the networks; to protect transformer outputs, and to have protections when switching from aerial to underground networks.

Due to the several applications and protection uses of the APR switches; they are supplied not only with a huge range of characteristics included in the equipment, but also has several operational applications that allow increasing the APR versatility.

APR160

Able to work with currents of up to 160 amps, allows NH fuses size 00, can be operated with solid blades in switching operations with currents up to 250 amps.

APR400

Designed to work with currents of up to 400 amps, allows fuses type NH, in sizes 01 and 02. Can be operated also with solid blades with operating currents of up to 630 amps.

APR630

Suitable for use with current of up to 630 amps, allows fuses type NH, in sizes 01, 02 and 03. Can be operated also with solid blades as switches with operating currents of up to 800 amps.

Above products on this page are unsuitable for multi-stranded flexible cables.

APR Series - Accessories

Lugs for joining LVABC services and mains.

The accessories to suit the range of APR160, 400 and 600 amp fuse switches.

In the range are solid links fuses and brackets, other sizes of fuses are available on request.

DPAV Series - Fuse holders

The DPA fast connectors have been designed to rapidly connect consumers to the low voltage overhead distribution system, with branching ranging between 4 and 16mm2 . The system is adjusted by means of a stainless steel contact spring, and its tinplated copper flat contacts ensure a safe and lasting connection. The unit is suited for use in
all kinds of services to consumers, and is fitted with an IFC connection component. Apart from working as a connecting device, it can be used as a cutout device. In this case, the IFC component (connection) is replaced by the IFF component (insulation) so that the current cutout can be effected at a point of easy access to the Electricity Distribution Company and of difficult access to the consumer. The unit includes a strapping ring to prevent or detect tampering.

IFN Fuse

These are a D01 or D02 IEC, VDE and UNE standard neozed fuse and are 400 volts AC rated with 100kA interrupting rating, suitable for the DPA fast connect fuse holder.
