Hardware – Galvanised Steel
Regular price
$511.43
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

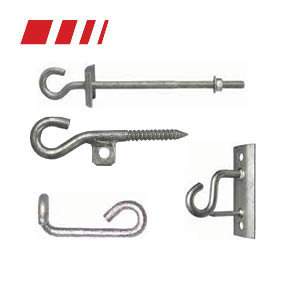

Various Galvanised Steel Hardware
Open Eye Bolts, J Hooks, Q Hook, LVABC Hook, ABC Mechanical Weak Links, M12 Eye Nuts, Angle Bracket
Product Range

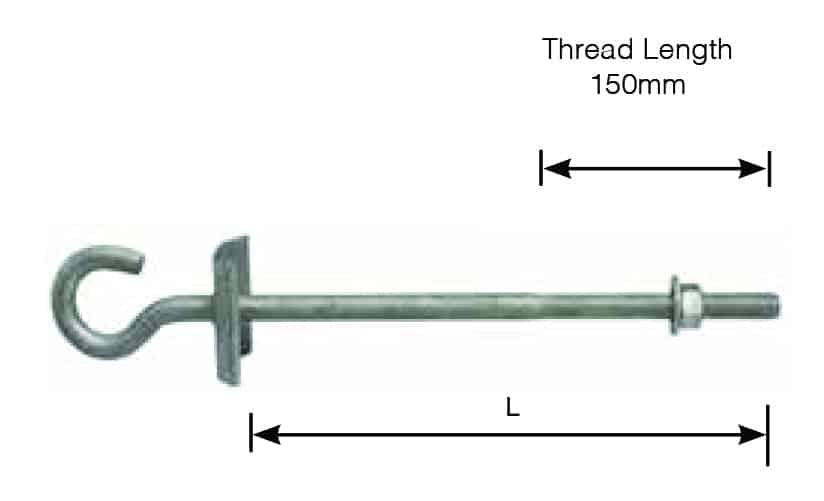

| Open Eye Bolts | ||||
| Length ‘L’ (mm) | Product Number | |||
| 16mm Dia. ‘D’ | 20mm Dia. ‘D’ | |||
| 250 | OEB16X250* | OEB20X250* | ||
| 325 | OEB16X325 | – | ||
| 350 | OEB16X350* | OEB20X350* | ||
| *Preferred item in AS3766 | ||||
| Hooks | ||||
| Product Number | Description | Tag Hole Size | ||

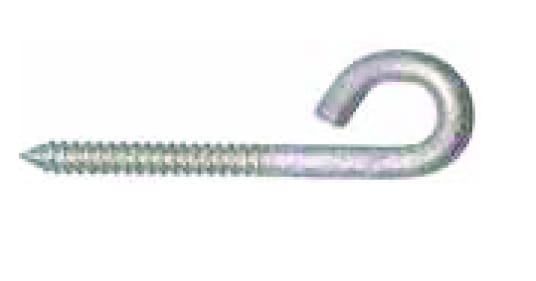

| J Hook | J Hook | – | ||

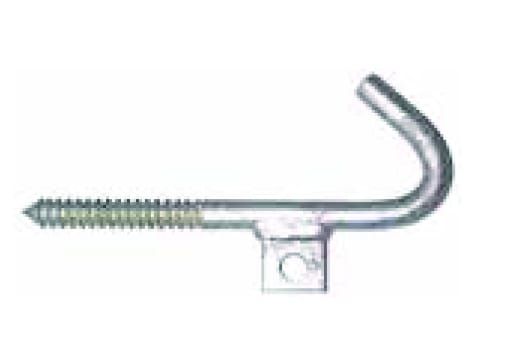

| J Hook-T | J Hook with Earth Tag | 11mm | ||
| SH-T | Closed Eye J Hook with Earth Tag | 11mm | ||
| Q Hook | Q Hook | – | ||
| LVABC Hook | ||||
| Product Number | Max. Working Load | Hook Diameter (mm) | ||
| HB1 | 12kN | 16 | ||

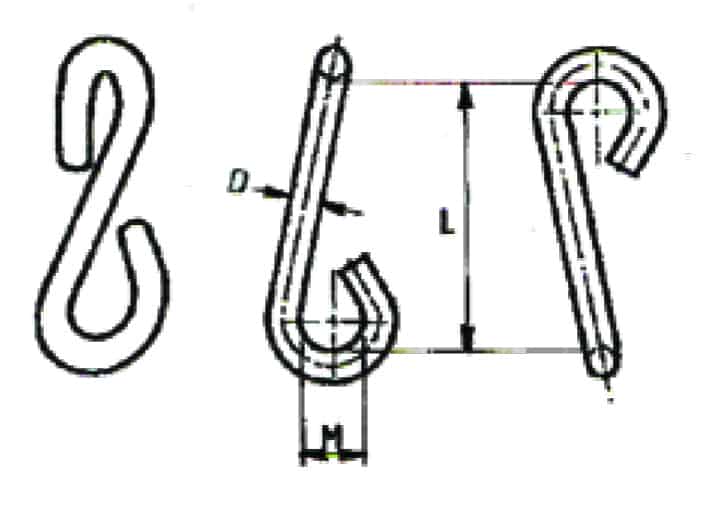

| ABC Mechanical Weak Links | ||||
| Product Number Colour Coded | Nominal Falling Load (kN) |
Nominal Dimensions | ||
| LFG150 | 1.5 | 6 | 64 | 27 |
| LFG400T | 4 | 10 | 70 | 20 |
| LFG600T | 6 | 10 | 65 | 20 |
| LFG800T | 8 | 12 | 70 | 20 |
| M12 Eye Nuts | ||||
| Product Number | Description | |||

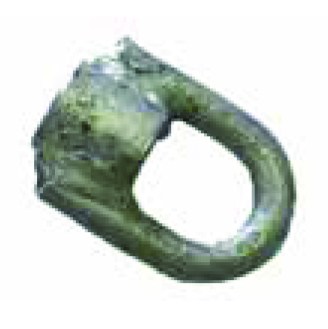

| OEN M12 | M12 eye nut to Energy Australia specifications | |||

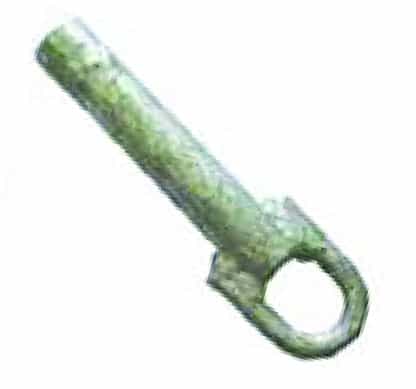

| OEN M12 E | M12 extended eye nut to Energy Australia specifications | |||

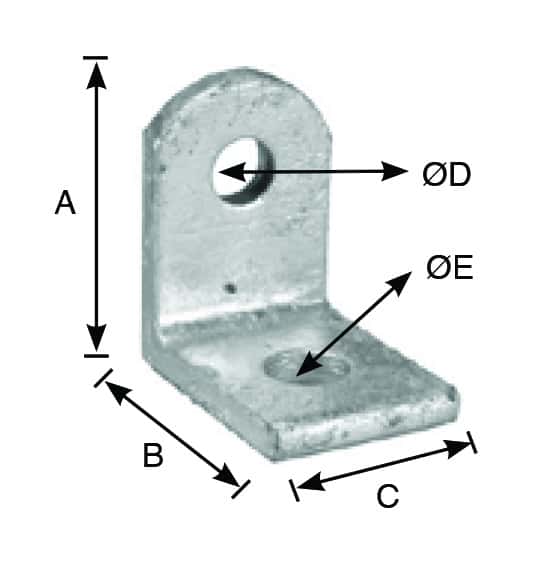

| Angle Bracket | ||||
| Product Number | Dimensions (mm) | |||
| ANG BKT | A: 76.5 B: 74.5 C: 50 ØD: 17.5 ØE:21.5 | |||
• Open Eye Bolts to AS3766
• J Hooks M12 to AS3766

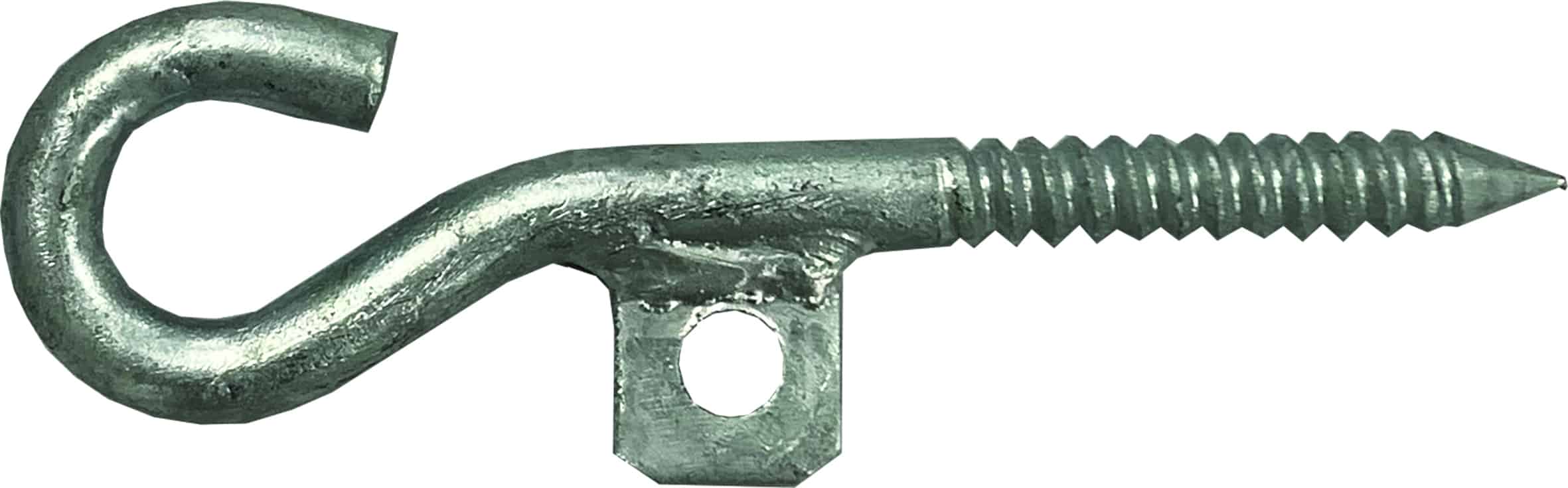

• Closed Eye J Hook with Earth Tag M12 to AS3766

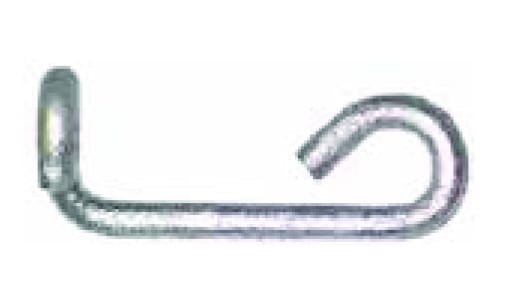

• Q Hook M12 to AS3766

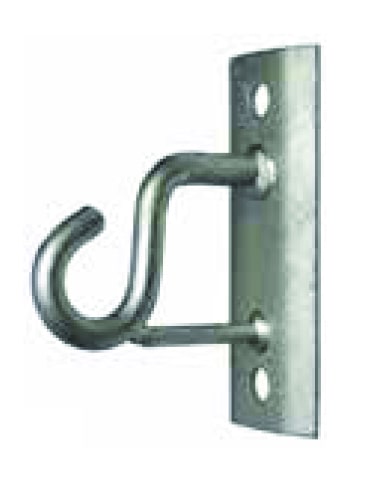

• LVABC Hook Galvanised steel hook bracket, Hook diameter: 16mm, to AS3766

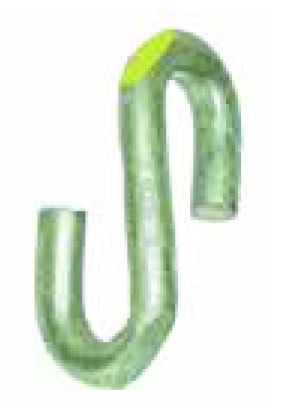

• ABC Mechanical Weak Links can be installed between suspension clamp and pole support fitting. Can be installed between service cable strain clamps or mains cable strain clamps. Mild steel galvanised to AS1650
• M12 eye nuts to Energy Australia specifications
• Angle Bracket to Ausgrid specifications
