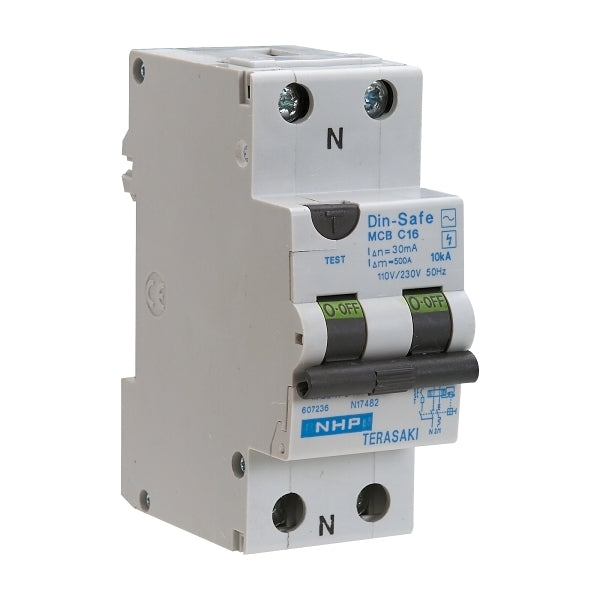

NHP DIN-T Residual Current Device Short Body w/ Overcurrent 10kA 25A 1Pole and N C Curve 30mA Type A***EMAIL/TEXT FOR PRICING***
Regular price
$0.00
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Component Type (ETIM Class)
Earth leakage circuit breaker
Electrical
Rated current25 A
Rated voltage240 V
Rated leakage current30 mA
Frequency50/60 Hz
Rated short-circuit breaking capacity according to AS/NZS 6100910 kA
Voltage typeAC
Trip curveC
Rated impulse withstand voltage Uimp6 kV
Leakage current typeA
Tripping time40 ms
Service voltage (Min)100 V
Max. operating voltage (Umax)255 V
Rated residual make/break capacity6000 A
Protected neutral poleNo
Number of poles (total)2
Electrical life at Un, In (service cycles)10000 cycles
Type of electric connectionFork and pin
Isolator applicationYes
Rated insulation voltage Ui440 V
Concurrently switching neutral conductorYes
Construction
Mounting methodDIN rail (top hat rail) 35 mm
Degree of protection (IP)IP20
Number of protected poles1
Mechanical
Mechanical life (service cycles)20000 cycles
Shock duration (Max)5 ms
Shock acceleration (Max)40 g
Vibration acceleration (Max)1.5 m/s²
Vibration frequency, operational (Max)80 Hz
Vibration duration (Max)30 min
Dimensions
Depth68 mm
Height86 mm
Width36 mm
Weight0.25 kg
Environment
Operating temperature-5-55 °C
