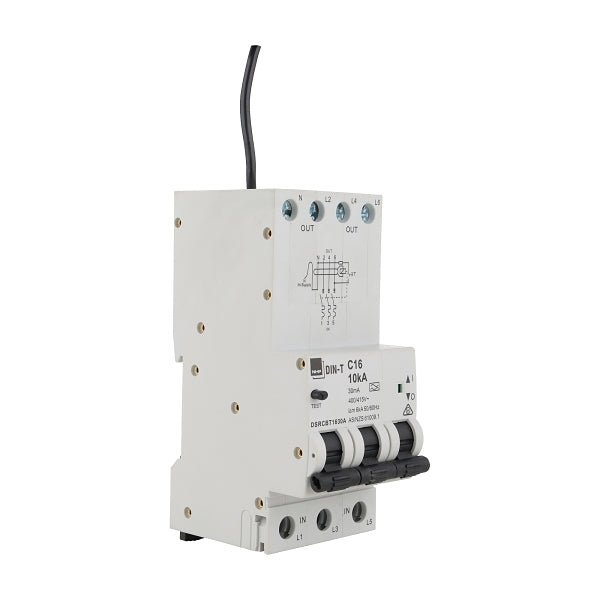

NHP DIN-T Residual Current Device Long Body w/ Overcurrent 10kA 20A 3Pole and N C Curve 300mA Type A***EMAIL/TEXT FOR PRICING***
Regular price
$0.00
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Component Type (ETIM Class)
Earth leakage circuit breaker
Electrical
Rated current20 A
Rated voltage415 V
Rated leakage current300 mA
Frequency50/60 Hz
Rated short-circuit breaking capacity according to AS/NZS 6100910 kA
Voltage typeAC
Trip curveC
Rated impulse withstand voltage Uimp4 kV
Leakage current typeA
Tripping time300 ms
Service voltage (Min)204 V
Max. operating voltage (Umax)457 V
Rated residual make/break capacity6000 A
Protected neutral poleNo
Number of poles (total)4
Electrical life at Un, In (service cycles)10000 cycles
Type of electric connectionFork and pin
Isolator applicationYes
Rated insulation voltage Ui500 V
Concurrently switching neutral conductorNo
Construction
Mounting methodDIN rail (top hat rail) 35 mm
Degree of protection (IP)IP20
Number of protected poles3
Mechanical
Mechanical life (service cycles)20000 cycles
Dimensions
Depth71.6 mm
Height117.5 mm
Width53.4 mm
Weight0.55 kg
Environment
Operating temperature-5-40 °C
