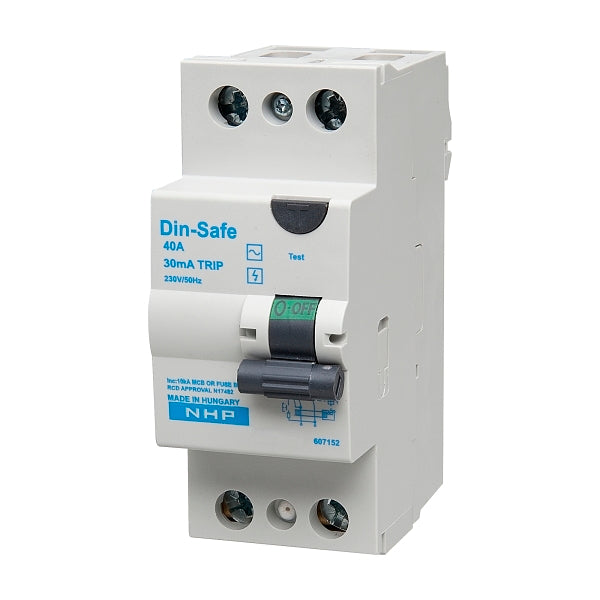

NHP DIN-T Residual Current Circuit Breaker RCCB 1Pole plus Neutral 40A 30mA Type F AEG Brand FPF***EMAIL/TEXT FOR PRICING***
Regular price
$0.00
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Component Type (ETIM Class)
Residual current circuit breaker (RCCB)
Electrical
Number of poles2
Voltage typeAC
Frequency50/60 Hz
Rated current40 A
Leakage current typeF
Rated leakage current30 mA
Concurrently switching neutral conductorYes
Service voltage (Min)117 V
Max. rated operation voltage Ue AC415 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp8 kV
Rated fault current10000 A
Selective protectionNo
Short-time delayed trippingYes
Electrical life at Un, In (service cycles)10000 cycles
Rated voltage230 V
Short-circuit breaking capacity (Icw)1 kA
Surge current capacity4 kA
Construction
Mounting methodDIN rail
Degree of protection (IP)IP20
Additional equipment possibleYes
Mechanical
Connectable conductor cross section solid-core50-50 mm²
Mechanical life (service cycles)20000 cycles
With interlocking deviceYes
Connectable conductor cross section multi-wired0-25 mm²
Dimensions
Height86
Width36 mm
Depth76 mm
Weight0.37 kg
Width in number of modular spacings2
Built-in depth76 mm
Environment
Operating temperature55 °C
Ambient temperature during operating-25-55 °C
Storage temperature70 °C
Pollution degree2
Certificates/Approvals
Explosion-proofNo
