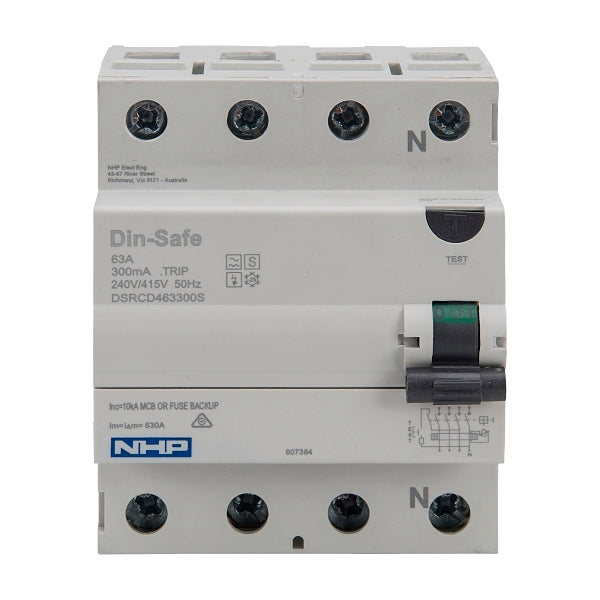

NHP DIN-T Residual Current Circuit Breaker RCCB 3Pole and Neutral 63A 300mA Type S***EMAIL/TEXT FOR PRICING***
Regular price
$0.00
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Component Type (ETIM Class)
Residual current circuit breaker (RCCB)
Electrical
Number of poles4
Voltage typeAC
Frequency50/60 Hz
Rated current63 A
Leakage current typeOther
Rated leakage current300 mA
Concurrently switching neutral conductorYes
Service voltage (Min)205 V
Max. rated operation voltage Ue AC455 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp8 kV
Rated fault current10000 A
Selective protectionYes
Electrical life at Un, In (service cycles)10000 cycles
Construction
Mounting methodDIN rail
Degree of protection (IP)IP20
Additional equipment possibleYes
Mechanical
Connectable conductor cross section solid-core50-50 mm²
Mechanical life (service cycles)20000 cycles
Dimensions
Height86
Width72 mm
Depth76 mm
Weight0.37 kg
Width in number of modular spacings4
Built-in depth76 mm
Environment
Operating temperature55 °C
Ambient temperature during operating-25-55 °C
Storage temperature70 °C
Pollution degree2
Certificates/Approvals
Explosion-proofNo
