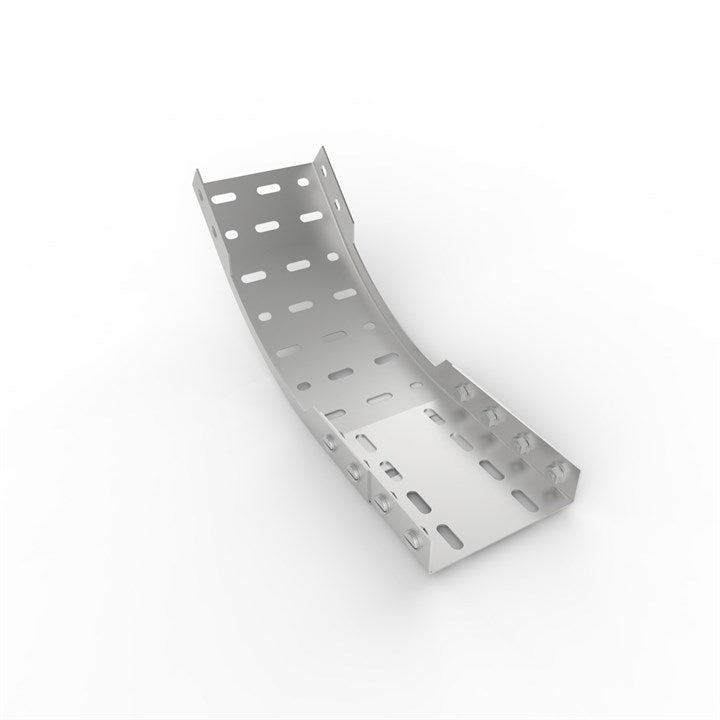

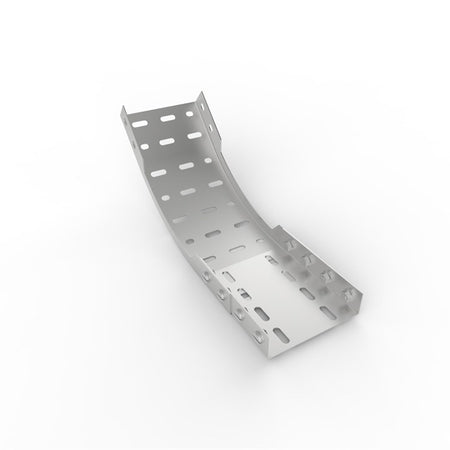

IB45-D 102 | Medium Duty Straight Edge Cable Tray 45° Inside Bend
Regular price
$177.23
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Electrix® Medium Duty Straight Edge Cable Tray Inside Bends, in 316L - V4A - 1.4404 stainless steel, are used to change direction during an installation.
This 45° inside bend is compatible with our 102 mm wide Medium Duty Straight Edge Cable Tray System.
Each bend is supplied with 1 x coupling, nuts & screws (Part No. CO-D 102).
Material Information
- Material Type: Stainless Steel
- Material Grade: 316L - V4A - 1.4404
- Material Finish: Dull (2B)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 1.2
- Width (mm): 102
- Wall Height (mm): 27
-
Custom Design:
Custom Designs available on request.
- Custom sizes
- Polished or Satin (Brushed) material
- Standard: Medium Duty
- Wall Type: Straight Edge
- Wall Height (mm): 27
- Bend Angle: 45°
- Bend Direction: Inside
- For Tray Width (mm): 102
- Supplied With: Coupling, Nuts & Screws
- Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Medium Duty Straight Edge Cable Tray
- Pack Quantity: 1
- Weight (kg): 0.59
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
