M/HRF FP 450 | Medium / Heavy Duty Return Flange Cable Tray Fish Plate
Regular price
$97.95
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

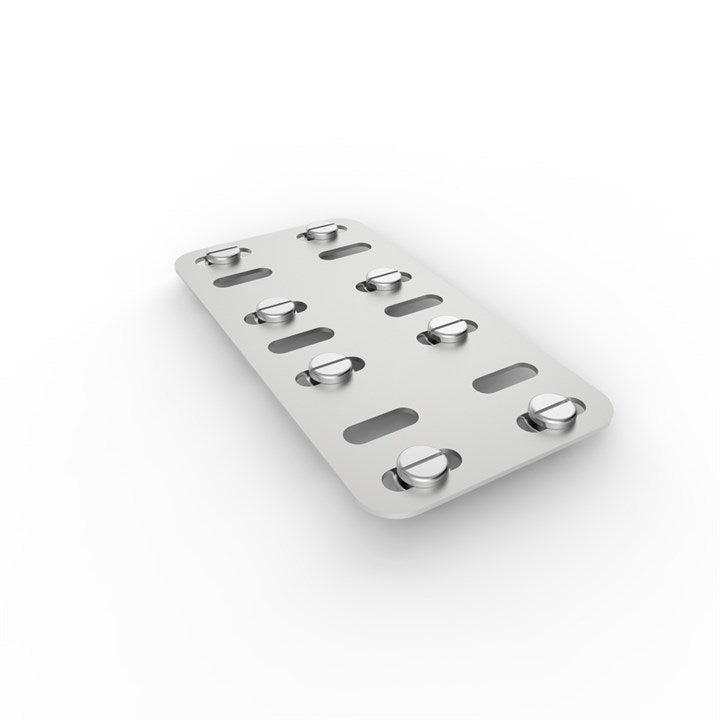

Electrix® Cable Tray Fish-Plates, in 316L - V4A - 1.4404 stainless steel, are used to provide additional support at connection points when installing our wider cable tray sizes (225 to 600 mm).
This fish-plate is compatible with our 450 mm wide Medium Duty Return Flange Cable Tray System and our 450 mm wide Heavy Duty Return Flange Cable Tray System.
Each fish-plate is supplied complete with the necessary nuts & screws.
Material Information
- Material Type: Stainless Steel
- Material Grade: 316L - V4A - 1.4404
- Material Finish: Dull (2B)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 1.2
- Width (mm): 450
-
Custom Design:
Custom Designs available on request.
- Custom sizes
- Polished or Satin (Brushed) material
- For Tray Width (mm): 450
- Supplied With: Nuts & Screws
- Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Heavy Duty Return Flange Cable Tray, Medium Duty Return Flange Cable Tray
- Pack Quantity: 1
- Weight (kg): 0.4
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
