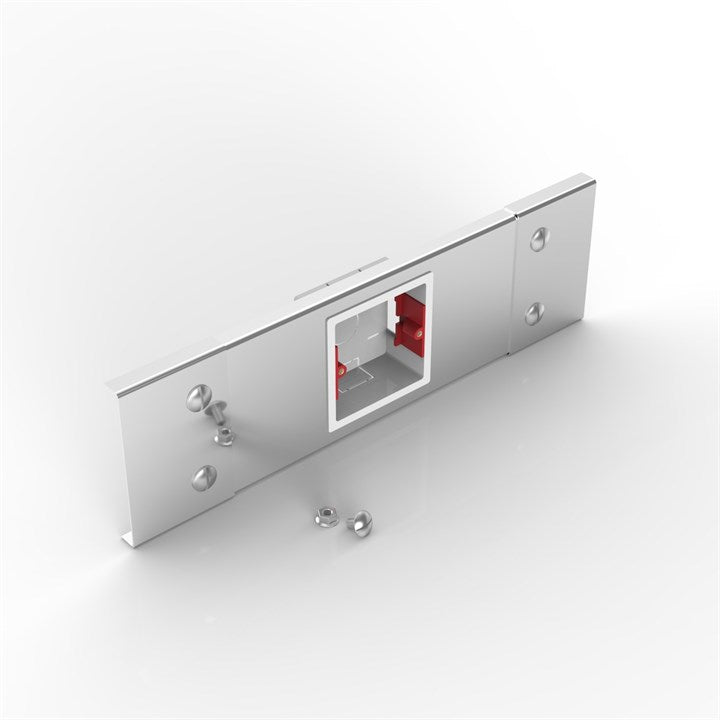

P150 1GANG PLATE | Flat Lid Trunking Socket Outlet Plate
Regular price
$177.99
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Electrix® Flat Lid Socket Outlet Plates, in 304 - V2A - 1.4301 stainless steel, are used when installing power and data outlets within a trunking installation.
This polished finish 1 gang socket outlet plate is compatible with our 150 x 150 & 150 x 100 (W x H mm) Flat Lid Trunking Lengths (Part No. P150-150 & P150-100) and 1 gang 13 A switched socket (Part No. ELEC 1G-P SOCK).
Our unique system features a cover plate over each lid joint which reduces the ingress of foreign matter.
Complete with a plastic flush mounted back box (UK Style).
European/USA style socket outlet plates are available on request.
Material Information
- Material Type: Stainless Steel
- Material Grade: 304 - V2A - 1.4301
- Material Finish: Polished
- Material Thickness (mm): 1.2
- Width (mm): 150
-
Custom Design:
Custom Designs available on request.
- 316L - V4A - 1.4404 material
- Custom sizes
- Pre-lasered cable entry holes & laser cut apertures
- European & USA style socket apertures
- Multi-compartment
- Lid safety chains
- Lid gasket material
- Unique Cover Plate: Fitted over every lid joint, reduces the ingress of foreign matter
- Number of Gangs: 1
- UK Style: Yes
-
Approvals:
- For Trunking Size (mm): 150 x 150, 150 x 100
- Supplied With: Plastic Back Box, Lid Fastening Turnbuckles & Cover Plates
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Flat Lid Trunking
- Alternative Material Finish / Grade: Satin (Brushed) 304 - V2A - 1.4301
- Pack Quantity: 1
- Weight (kg): 0.80
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
