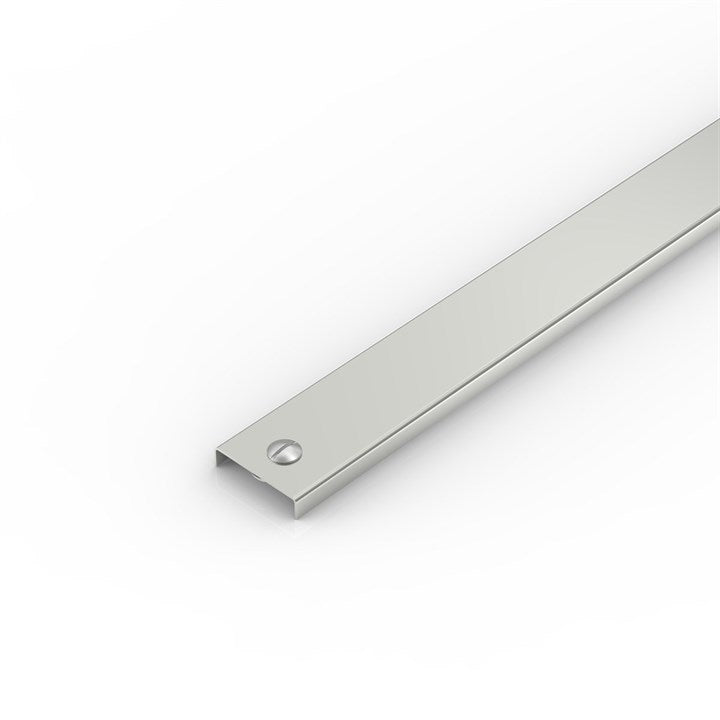

P50-555 LID | Lighting Trunking Short Lid
Regular price
$134.48
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Electrix® Lighting Trunking Short Lids, in 304 - V2A - 1.4301 stainless steel, are supplied complete with: turnbuckle lid retainers.
This IP4X / IPXXD polished finish 555 mm long lid is compatible with our Lighting Trunking and Flat Lid Trunking System.
Material Information
- Material Type: Stainless Steel
- Material Grade: 304 - V2A - 1.4301
- Material Finish: Polished
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 1.2
- Width (mm): 50
- Length (mm): 555
-
Custom Design:
Custom Designs available on request.
- 316L - V4A - 1.4404 material
- Custom lengths and sizes
- Pre-lasered cable entry holes & laser cut apertures
- Multi-compartment
- Lid safety chains
- Lid gasket material
-
Approvals:
- Environmental Rating: IP4X / IPXXD*
- For Trunking Size (mm): 50 x 50
- Supplied With: Lid Fastening Turnbuckles
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Lighting Trunking, Flat Lid Trunking
- Alternative Material Finish / Grade: Satin (Brushed) 304 - V2A - 1.4301
- Pack Quantity: 1
- Weight (kg): 0.42
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
