Sicame

PA Series

In stock
SKU: PA10/1
$398.69 inc. GST
Style

Got questions?

Feel free to get in touch.

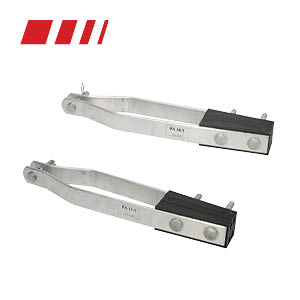

Strain Clamps

For termination of insulated overhead bundled cables. Broad cable range from 4 x 25 to 4 x 150.

Spring loaded wedges for easier cable insertion.

Product Range

Product Number Description Cable Size & Configuration (mm²) Max Failing Load (kN)

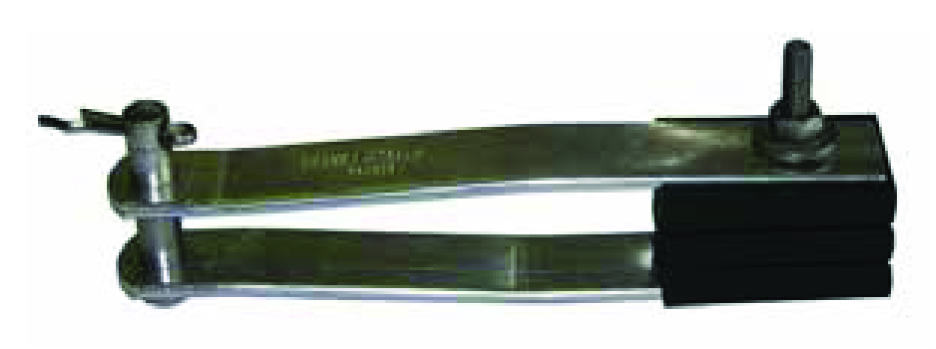

PA2535 Strain clamp with aluminium arm – to suit 2 x 25 to 4 x 35 LVABC XLPE 2, 3 & 4 core (use blanking for non used cores). Designed for long spans over roads, dams, driveways, rail or high wind areas 2, 3 or 4 core XLPE insulated 25 to 35 11

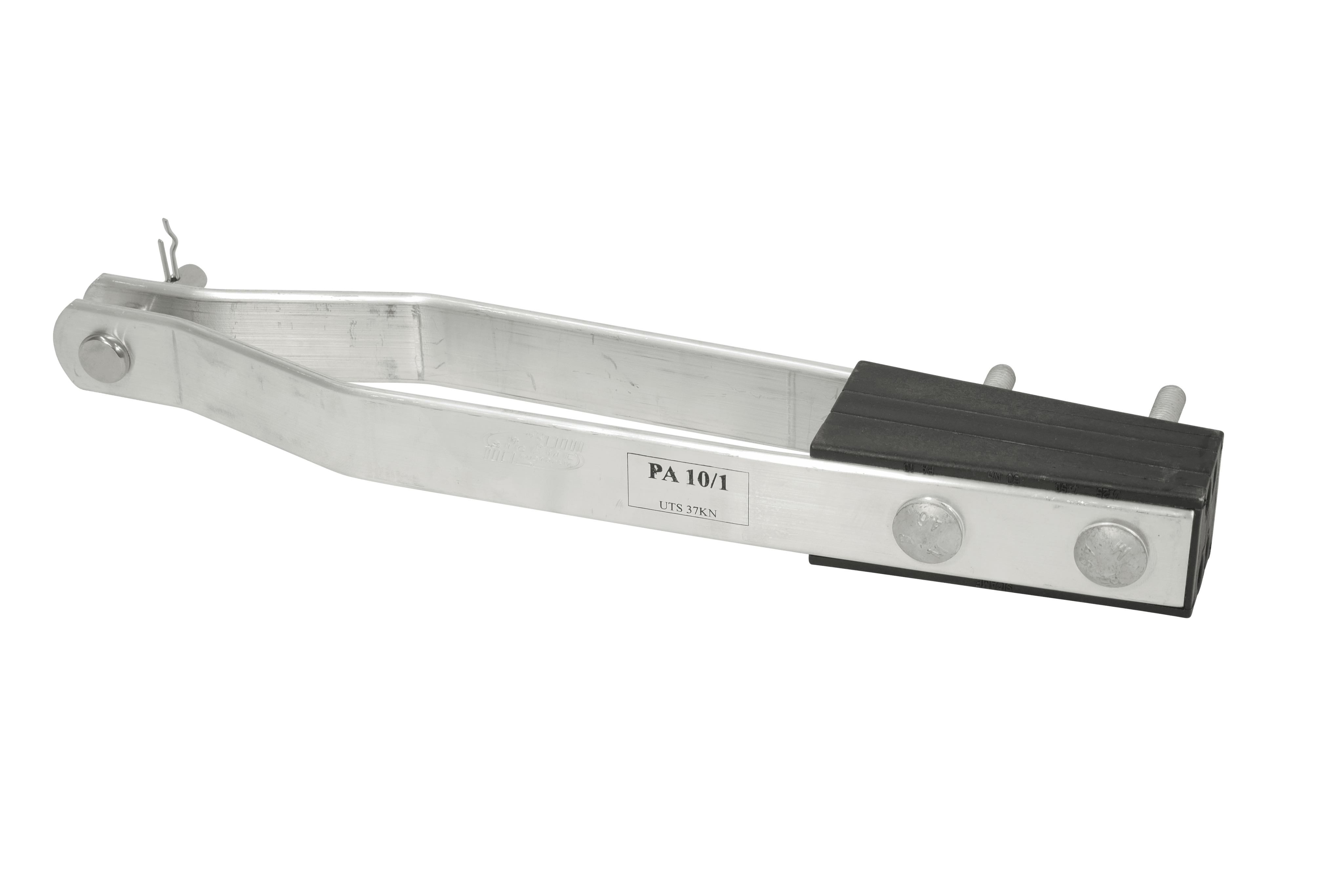

PA10/1 Strain clamp with aluminium arm – to suit 4 x 25, 4 x 50 with humpback splitpin 2, 3 & 4 core XLPE insulated 25 to 50 35.75
PA10/1S Strain clamp with aluminium arm – to suit 4 x 25, 4 x 50 with S/S hardware + humpback splitpin 2, 3 & 4 core XLPE insulated 25 to 50 35.75

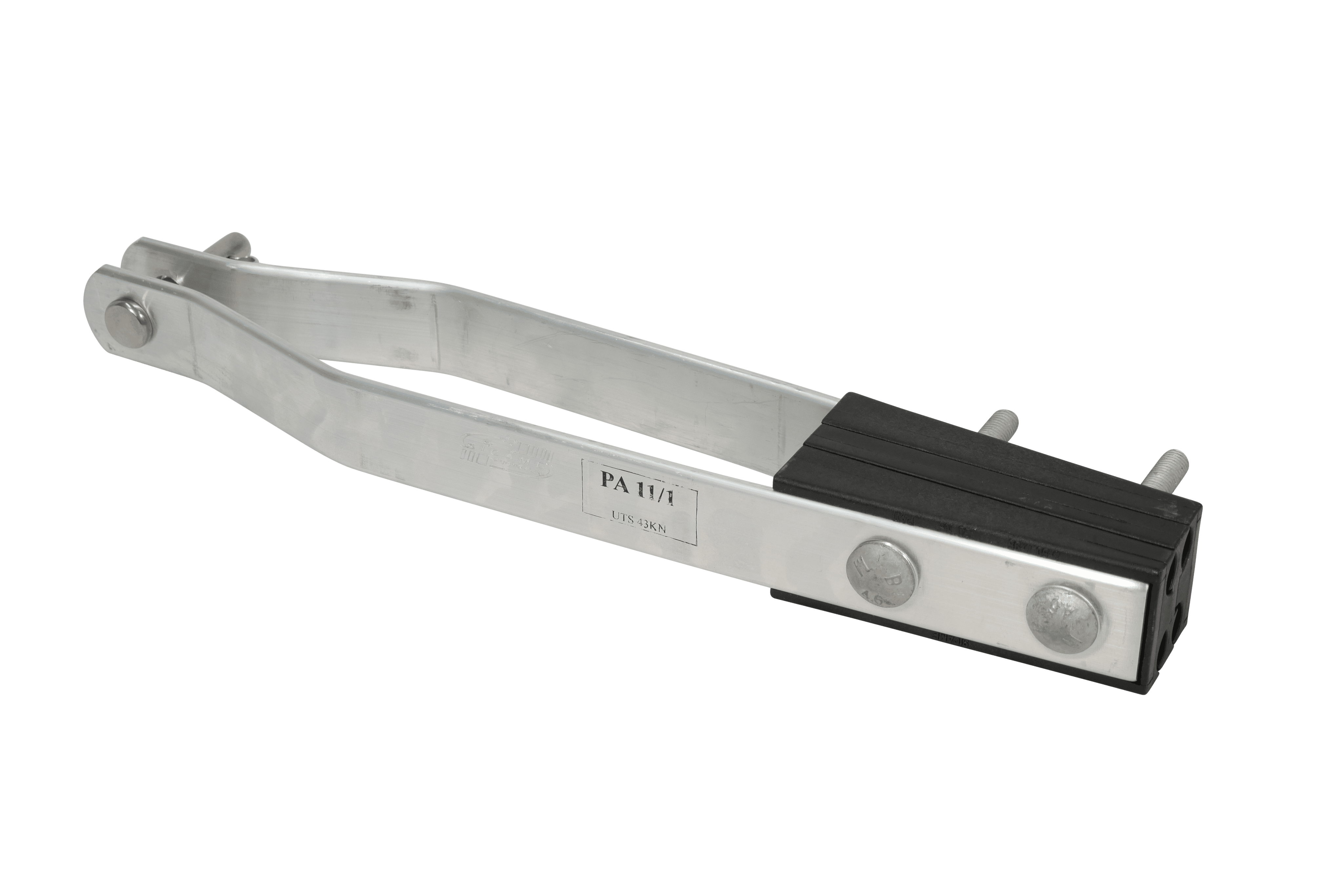

PA11/1 Strain clamp with aluminium arm – to suit 4 x 50, 4 x 95 with humpback splitpin 2, 3 & 4 core XLPE insulated 50 to 95 44
PA11/1S Strain clamp with aluminium arm – to suit 4 x 50, 4 x 95 with S/S hardware + humpback splitpin 2, 3 & 4 core XLPE insulated 50 to 95 44
PA11/1SR Strain clamp with aluminium arm – to suit 4 x 50, 4 x 95 with S/S hardware bolts enter from oposing sides with SS “R” clip 2, 3 & 4 core XLPE insulated 50 to 95 44
PA11/1SRER Strain clamp with aluminium arm – to suit 4 x 50, 4 x 95 with S/S hardware bolts enter from oposing sides with SS “R” clip 2, 3 & 4 core XLPE insulated 50 to 95 44
PA122A Strain clamp with galvanised steel arm – to suit 4 x 95 to 150 sqmm with S/S hardware bolts 2, 3 or 4 core XLPE insulated 95 to 150 54



• Bolted full tension clamp
• Meets requirements of AS 3766
• Removable pin for easy installation
• Range taking
