S50-50 LT | Lighting Trunking Length 3.0 m
Regular price
$410.27
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

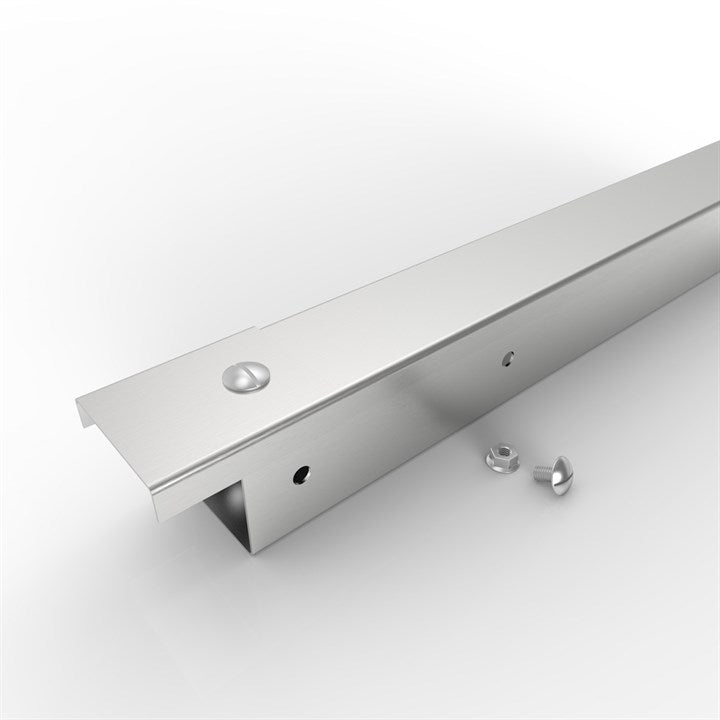

Electrix® Lighting Trunking Lengths, in 304 - V2A - 1.4301 stainless steel, are supplied complete with: lid, cover plate & turnbuckle lid retainers.
This IP4X / IPXXD satin (brushed) finish 3.0 m length is compatible with our Flat Lid Trunking System.
Our unique system features a cover plate over each lid joint which reduces the ingress of foreign matter.
Please order your couplings separately.
Material Information
- Material Type: Stainless Steel
- Material Grade: 304 - V2A - 1.4301
- Material Finish: Satin (Brushed)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 1.2
- Size (W x H mm): 50 x 50
- Height (mm): 50
- Width (mm): 50
- Length (m): 3.0
-
Custom Design:
Custom Designs available on request.
- 316L - V4A - 1.4404 material
- Custom lengths and sizes
- Pre-lasered cable entry holes & laser cut apertures
- Multi-compartment
- Lid safety chains
- Lid gasket material
- Unique Cover Plate: One fitted per lid, reduces the ingress of foreign matter
-
Approvals:
- Environmental Rating: IP4X / IPXXD*
- For Trunking Size (mm): 50 x 50
- Supplied With: Lid, Lid Fastening Turnbuckles & Cover Plate
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Lighting Trunking, Flat Lid Trunking
- Alternative Material Finish / Grade: Polished 304 - V2A - 1.4301
- Pack Quantity: 1
- Weight (kg): 7
- Commodity Code: 73269098
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
