TWB-D 460 304 | Wall Mounted Support Bracket
Regular price
$232.43
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.

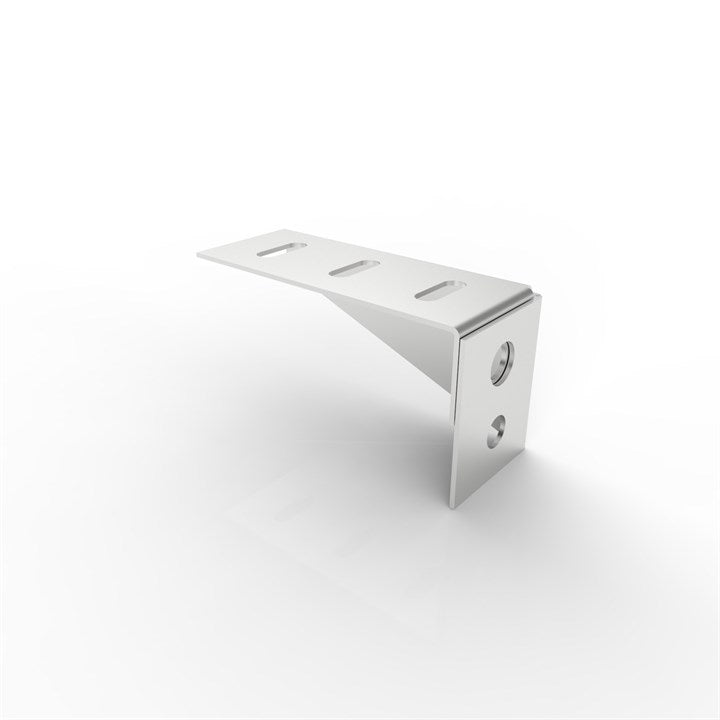

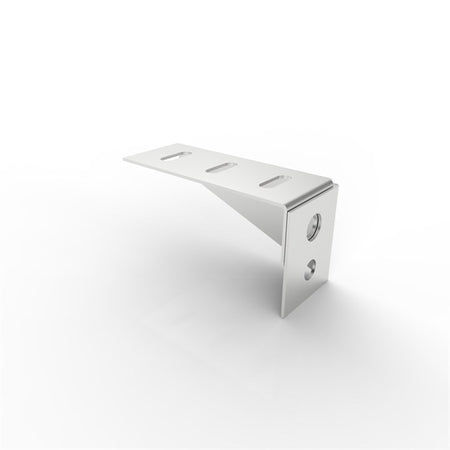

Electrix® Wall Mounted Support Brackets, in 304 - V2A - 1.4301 stainless steel, are designed primarily to support our Cable Tray Systems. However, our Wall Mounted Support Brackets can also be used to support our Trunking and Conduit Systems.
This wall mounted support bracket is compatible with any of our 304 - V2A - 1.4301 Flat Lid Trunking, Apex Lid Trunking, Conduit & Cable Tray Systems, up to 460 mm in width.
Material Information
- Material Type: Stainless Steel
- Material Grade: 304 - V2A - 1.4301
- Material Finish: Dull (2B)
- Surface Finish (µm Ra): < 0.5
- Material Thickness (mm): 2.5
- Fixing Centres (mm): 55
- Hole Ø: M10
- Recommended Usable Width (mm): Up to 460
- Length of Cantilever (mm): 463
- Width of Cantilever (mm): 44
- Height of Cantilever (mm): 96
- Custom Design: Dull (2B) 1.4301 - 304 - V2A available on request
- For Trunking Size (mm): 50 x 50, 75 x 75, 100 x 50, 100 x 100, 150 x 100, 150 x 150
- For Tray Width (mm): 51, 75, 76, 100, 102, 150, 152, 200, 225, 230, 300, 305, 400, 450, 50
- Ideally Suited For: Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Flat Lid Trunking, 15° Apex Lid Trunking, Lighting Trunking, Metric Conduit, NPT Conduit, Medium Duty Straight Edge Cable Tray, Medium Duty Return Flange Cable Tray, Heavy Duty Return Flange Cable Tray, Wire Basket Cable Tray, Brackets, Fasteners
- Pack Quantity: 1
- Weight (kg): 1.13
- Commodity Code: 73269098
- Non-Refundable: Yes
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
