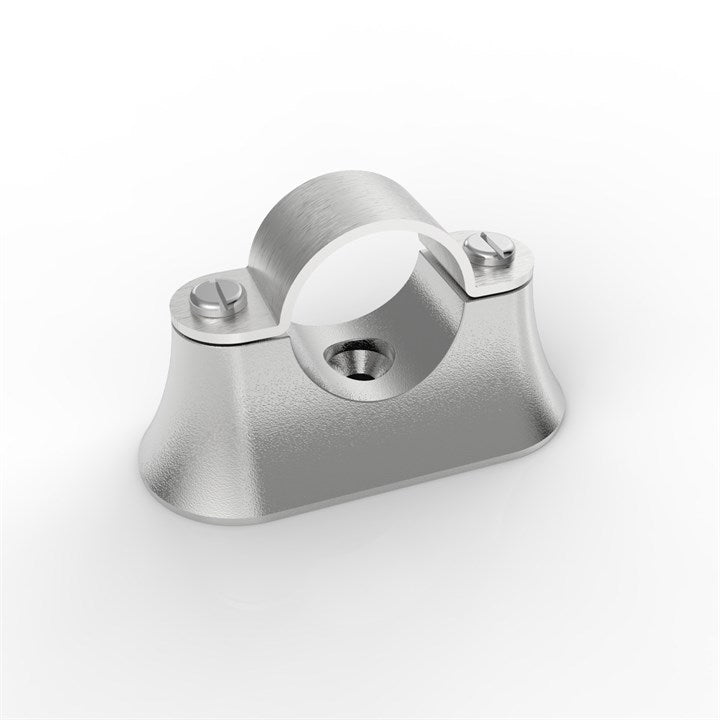

UK HOSP25 | Metric Conduit Hospital Saddle
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Electrix® Metric Conduit Hospital Saddles, in 316C16F stainless steel with a 316L - V4A - 1.4404 stainless steel top, are designed to be used in areas where ease of cleaning is a priority.
The world's first complete Stainless Steel Conduit System, invented by Electrix®, is known for its unrivalled quality and aesthetics.
Since the system was launched over 35 years ago, it has been specified by the world's largest companies, for projects ranging from oil rigs to monuments, tunnels to chemical processing plants.
This hospital saddle is compatible with our 25 mm Metric Conduit Lengths.
Supplied with captive fixings.
- Material Type: Stainless Steel
-
Material Grade: Top: 316L - V4A - 1.4404
Base: 316C16F -
Material Finish: Top: Satin (Brushed)
Base: Electropolished
- Conduit Ø (mm): 25
- Size Ø (mm): 25
- Clearance (mm): 12.5
-
Approvals:
-
UL Information:
File Number: E233497
Conduit Systems for Cable Management
Certified to IEC Standards
- For Conduit Ø (mm): 25
- Supplied With: Saddle Top & Fixings
- Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Metric Conduit
- Pack Quantity: 1
- Weight (kg): 0.17
- Commodity Code: 73071990
- Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
