UK ISO 25-PG13.5 | Conduit Adaptor
Regular price
$131.55
inc. GST
Couldn't load pickup availability
Got questions?
Feel free to get in touch.
Electrix® Metric Conduit Adaptors, in 316L - V4A - 1.4404 stainless steel, can be used to change the conduit thread type during an installation.
The world's first complete Stainless Steel Conduit System, invented by Electrix®, is known for its unrivalled quality and aesthetics.
Since the system was launched over 35 years ago, it has been specified by the world's largest companies, for projects ranging from oil rigs to monuments, tunnels to chemical processing plants.

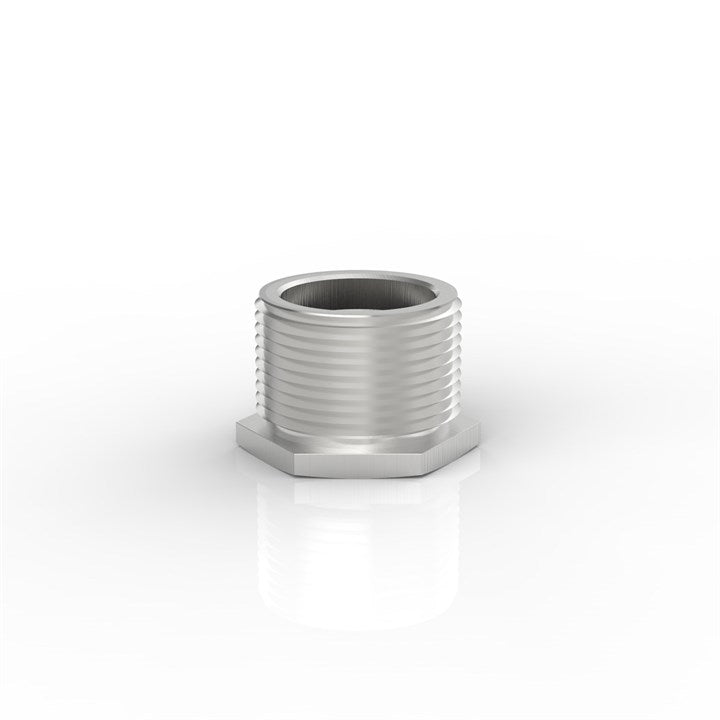

This adaptor converts our 25 mm Metric Conduit System to PG13.5 Conduit System.
Material Information
- Material Type: Stainless Steel
- Material Grade: 316L - V4A - 1.4404
- Material Finish: Machined Finish
- Conduit Ø (mm): 25
- Size Ø (mm): 25
- Size ISO: 25
- Size PG: 13.5
- Thread Type: Metric & PG
- Male Thread: Metric
- Female Thread: PG
-
Approvals:
-
UL Information:
File Number: E233497
Conduit Systems for Cable Management
Certified to IEC Standards - Environmental Rating: IP69K / IP66*
- For Conduit Ø (mm): 25
- Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Metric Conduit
- Pack Quantity: 1
- Weight (kg): 0.03
- Commodity Code: 73072910
-
Fine Print: *IP rating is only maintained when all apertures are adequately sealed.
In order to achieve this IP rating, the use of a suitable thread sealant is required on the final 3x threads of engagement.
Earth / ground continuity must be maintained at all times. - Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
