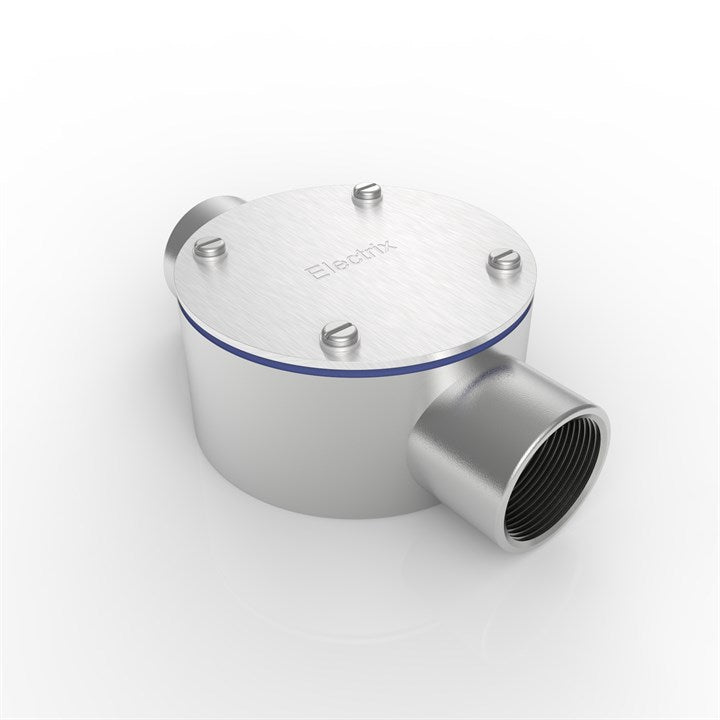

Electrix® Metric Conduit Through Boxes, in 316C16F stainless steel with a 316L - V4A - 1.4404 stainless steel lid, can be used as an inspection point and pull box during a long conduit run.
The world's first complete Stainless Steel Conduit System, invented by Electrix®, is known for its unrivalled quality and aesthetics.
Since the system was launched over 35 years ago, it has been specified by the world's largest companies, for projects ranging from oil rigs to monuments, tunnels to chemical processing plants.
This IP69K / IP67* through box, complete with an internal earth point, is compatible with our 32 mm Metric Conduit System.
Each through box is supplied with a lid, gasket, screws & washers.
- Material Type: Stainless Steel
-
Material Grade: Lid: 316L - V4A - 1.4404
Base: 316C16F -
Material Finish: Lid: Satin (Brushed)
Base: Electropolished
- Conduit Ø (mm): 32
- Size Ø (mm): 32
- Thread Type: Metric
- Female Thread: Metric
- Thread Details: ISO form 1.5 mm pitch
- Conduit Box Ø (mm): 81
- Gasket Material: 2 mm Neoprene Rubber
- Number of Lid Fixings: 4
-
Approvals:
-
UL Information:
File Number: E233497
Conduit Systems for Cable Management
Certified to IEC Standards - Environmental Rating: IP69K / IP67*
-
Operating Temperature (without Impact):
-25°C to +150°C (-13°F to +302°F)
(with Blue Silicone Gasket)-15°C to +90°C (+5°F to +194°F)
(with Black Neoprene Gasket)
- For Conduit Ø (mm): 32
- Supplied With: Lid, Gasket & Lid Fixings
- Ideally Suited For: Offshore, Chemical, Food, Dairy, Brewing, Pharmaceutical, Soft Drinks, Architectural companies & many more
- Compatible With: Metric Conduit
- Pack Quantity: 1
- Weight (kg): 0.64
- Commodity Code: 73071990
-
Fine Print: *IP rating is only maintained when all apertures are adequately sealed.
In order to achieve this IP rating, the use of a suitable thread sealant is required on the final 3x threads of engagement.
Earth / ground continuity must be maintained at all times. - Disclaimer: Images are representative of range and for illustration purposes only. Please check the full specifications for more information. All dimensions are subject to tolerances - please refer to the technical drawings.
